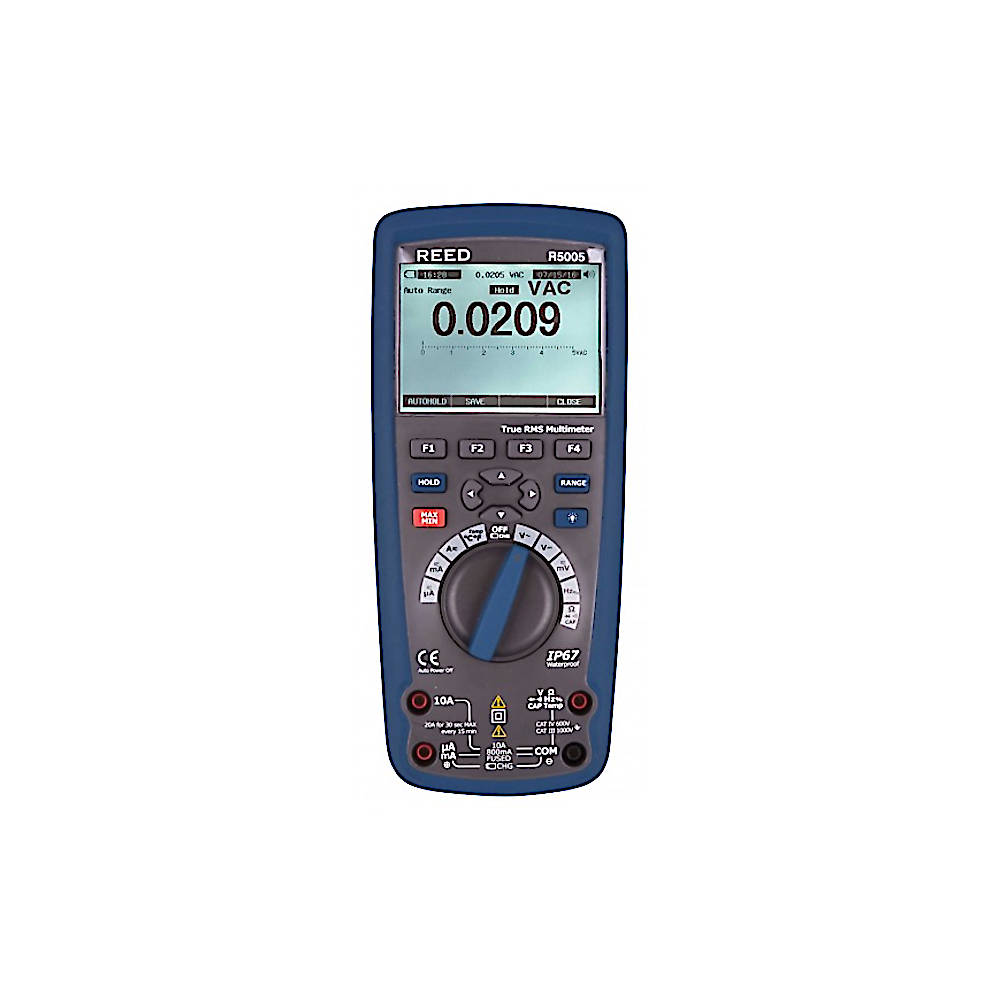

Reed Instruments Multimeter R5005

  • Reed Instruments Multimeter R5005

AC/DC Voltage:

Range:

AC: 50, 500mV, 5, 50, 500, 1000V
DC: 50, 500mV, 5, 50, 500, 1000V

Accuracy:


AC: 50/60Hz ±(0.3% rdg. + 25 dgt.)
<1 Khz ±(0.5% rdg. + 25 dgt.)
<5Khz ±(3% rdg. + 25 dgt.)


DC: 50mV ±(0.5% rdg. + 20 dgt.)
500mV, 5,50,500V ±(0.025% rdg. + 5 dgt.)
1000V ±(0.1% rdg. + 5 dgt.)

Resolution:

AC: 0.001, 0.01mV, 0.0001, 0.001, 0.01, 0.1V
DC: 0.001, 0.01mV, 0.0001, 0.001, 0.01, 0.1V



AC/DC Current:

Range:

500, 5000µA, 50, 500mA, 10A

Accuracy:

AC: 50/60Hz ±(0.6% rdg. + 25 dgt.)
<1 Khz ±(1.5% rdg. + 25 dgt.)
<5Khz ±(3% rdg. + 25 dgt.)

DC: 500, 5000µA, 50mA ±(0.1% rdg. + 20 dgt.)
500mA ±(0.15% rdg. + 20 dgt.)
10A ±(0.3% rdg. + 20 dgt.)

Resolution:

0.01, 0.1µA, 0.001, 0.01mA, 0.001A



Resistance:

Range:

50, 500Ω, 5, 50, 500kΩ, 5, 50MΩ

Accuracy:

50Ω: ±(0.5% rdg. + 20 dgt.)
500Ω/ 5,50kΩ: ±(0.05% rdg. + 10 dgt.)
500kΩ: ±(0.1% rdg. + 10 dgt.)
5MΩ: ±(0.2% rdg. + 20 dgt.)
50MΩ: ±(2% rdg. + 20 dgt.)

Resolution:

0.001, 0.01Ω, 0.0001, 0.001, 0.01kΩ, 0.01, 0.001MΩ



Capacitance:

Range:

5, 50, 500nF, 5, 50, 500µF, 10mF

Accuracy:

5, 50,500nF, 5,50µF ±(2%+40 dgt.)
500µF, 10mF ±(5%+40 dgt.)

Resolution:

0.001, 0.01, 0.1nF, 0.001, 0.01, 0.1µF, 0.01mF



Frequency:

Range:

50, 500Hz, 5, 50, 500kHz, 5, 10MHz

Accuracy:

±(0.01%+10 dgt.)

Resolution:

0.001, 0.01Hz, 0.0001, 0.001, 0.01kHz, 0.0001, 0.001MHz



Temperature:

Range:

-58 to 1832°F (-50 to 1000°C)

Accuracy:

±(1.0% rdg. + 4.5°F)
±(1.0% rdg. + 2.5°C)

Resolution:

1°F, 1°C



General Specifications:

Range Selection:

Autoranging/Manual

True RMS:

Yes

Measure AC/DC signals simultaneously:

Yes

Display:

50,000 count LCD display

Display Hold:

Yes

Max/Min:

Yes

Peak Hold:

Yes

Relative Mode:

Yes

Diode Test:

Yes

Recording Capabilities:

Yes (Over 2 hr recording time)

Wireless Connectivity:

Yes (Bluetooth via software)

Backlit Display:

Yes

Digital Analog Bargraph:

Yes

Continuity Check:

Audible signal if resistance ≤25Ω

Duty Cycle:

Yes (0.1 - 99.9%)

Kick Stand:

Yes

Auto Power Off:

Yes (after 15 minutes)

Power Supply:

Li-ion Rechargeable Battery

Low Battery Indicator:

Yes

Fuse Protection:

Yes

Replaceable Test Leads:

Yes

Software OS Compatibility:

Windows XP / 7 / 8 / 10

Overvoltage Category:

CAT. IV 600V, CAT. III 1000V

Product Certifications:

CE, IP67

Operating Temperature:

32 to 122°F (0 to 50°C)

Storage Temperature:

-4 to 140°F (-20 to 60°C)

Dimensions:

8.7 x 3.8 x 2.4" (220 x 96 x 60mm)

Weight:

22oz (631g)



True RMS Industrial Multimeter with Bluetooth.

The REED R5005 True RMS Bluetooth/Waterproof Industrial Multimeter is a full featured DMM capable of data logging and measuring multiple AC/DC signals simultaneously. With a LCD screen, analog bargraph and bluetooth capability the R5005 measures AC/DC voltage and current, resistance, capacitance, frequency and temperature.

FEATURES:

  • Measures AC/DC voltage and current, frequency, resistance, capacitance and temperature
  • Measure voltage and current simultaneously on a backlit LCD
  • Record data and and review trends with included software
  • Relative, Peak, Min/Max and data hold functions
  • Wireless Bluetooth Connectivity
  • Waterproof (IP67) double molded plastic housing
  • Cat. IV 600V, Cat. III 1000V safety rating
