MiniSim EEG 2000
|
EEG Waveforms: |
|
ABR-Alfa Beta Rhythm (1Khz‐4Khz). |
|
Alpha (3‐13Hz, Theta (4‐8Hz), Delta (1‐4 Hz), Gamma (30-200 Hz) |
|
Amplitude: |
|
User selectable amplitudes from 10 uV to 1mV (Peak to Peak). |
|
Performance Waveforms: |
Sine, Square, Triangle: |
|
Rate: |
0.2, 0.3, 0.4, 0.5, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60 Hz. |
|
Amplitude: |
0.1, 0.25, 0.50, 1, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0 mV. |
|
Output Amplitude Calibration: |
|
All outputs waveforms are calibrated using 1mV Square wave. |
|
Amplitude accuracy: ±2 % (Square Wave -All channels) |
|
ECG Rate |
|
|
Rate: |
User selectable: 30, 60, 90, 120 BPM |
|
Amplitude: |
User selectable 0.1, 0.25, 0.50, 0.75, 1.0, 1.5, 2.0, and 205 mV. |
General Specifications:
|
Temperature Range: |
|
|
Operating: |
+15°C to +35°C |
|
Storage: |
0°C to +50°C. |
|
Display |
|
|
Type: |
128 x64 graphics display with LED backlighting. |
|
Power: |
7.4 Volt Li-Ion Battery. 100-230 VAC input 8.5V Battery Charger. |
|
Housing: |
High impact ABS plastic case. |
|
Dimensions: |
7.75 x 4 x 1.5 in. (19.7 x 10.2 x 3.8 cm) |
|
Weight: |
0.45 kg / 1 lbs. with Battery. |

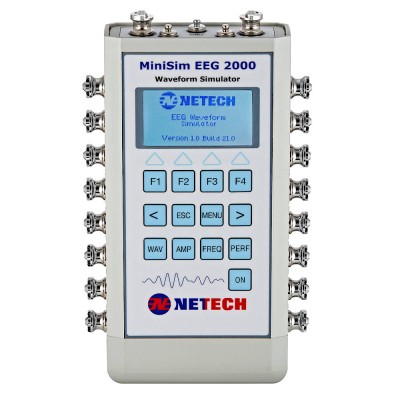

MiniSim EEG 2000 is a versatile EEG waveform simulation instrument. It is designed exclusively for testing various EEG monitoring devices including recorders, Sleep Study Monitors, and multi‐channel EEG monitoring systems.
This compact, microcontroller-based instrument simulates six different types of EEG waveforms, such as Alpha, Theta, Gamma, Delta, Beta, and ABR.
In addition to the EEG waveforms, it simulates ECG waveforms as well as performance waveforms such as Sine, Square and Triangle.
MiniSim EEG 2000 provides 16 independent outputs.
PRODUCT HIGHLIGHTS:
- 6 different EEG waveform Simulation.
- 16 channel independent outputs.
- 3 lead ECG normal sinus waveform simulation.
- Performance waveforms - Sine, Square, Triangle.
- Patented EEG cup electrodes for easy hookup of cup electrodes.
- Ideal for performance testing of all EEG instrumentation. One of a kind.
MAIN FEATURES:
- Large LCD graphics display.
- Simple to use, utilizing dedicated function keys and menu-driven interface.
- Compact, lightweight and battery operated.
- User selectable waveforms.
- User-selectable amplitude from 10 V to mV.
- User selectable amplitudes.
- Battery operated (7.4 Volt LI Ion rechargeable battery).
- 2 Year Warranty.
- Product Code: 333
- Availability: In Stock
