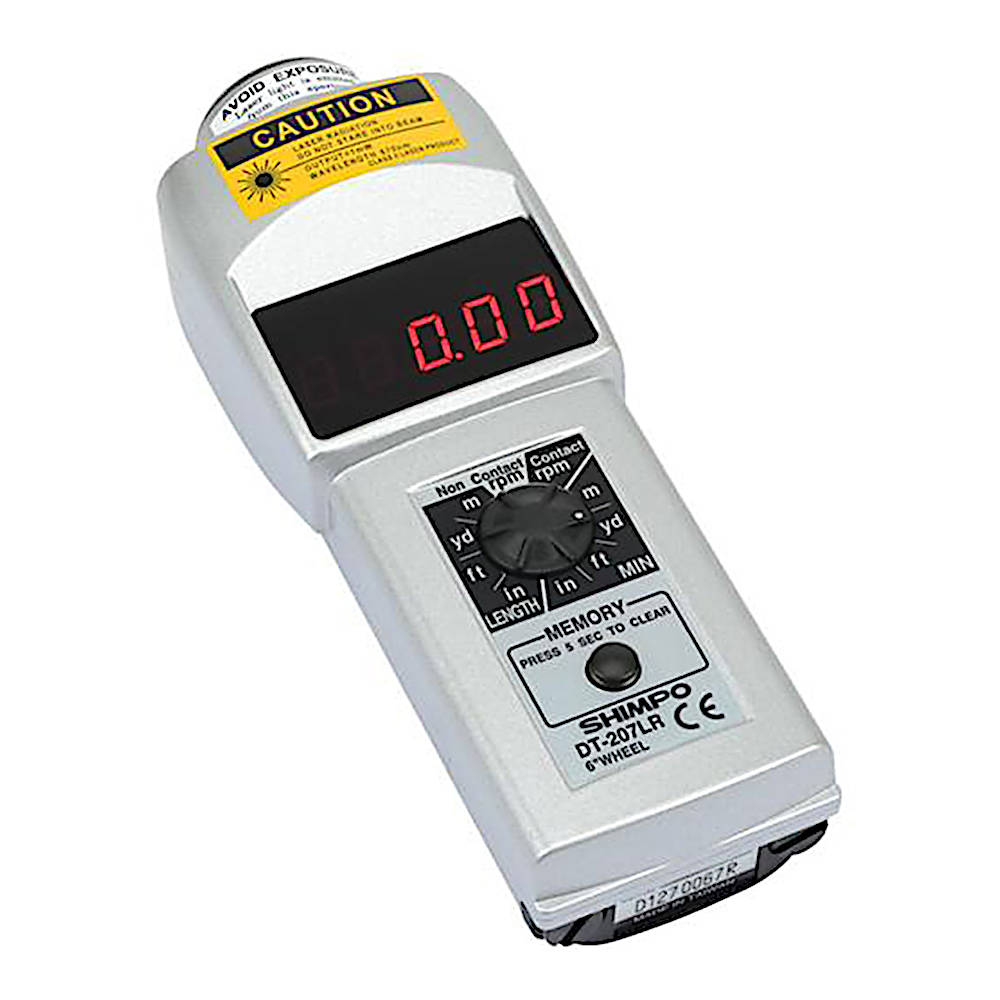

Shimpo Tachometer DT-207LR
|
Display Range: |
6 – 99,999 rpm |
|
Accuracy: |
±1 rpm: 6 -8,300 rpm |
|
Display: |
5 digit 0.4” (10 mm) high LED |
|
Measuring Units: |
rpm (on contact using adapter, included) for YPM, mPM, FPM, IPM, and Length: YRD, m, FT and IN |
|
Measuring Distance: |
1” (25.4mm) to 20’ (6m) |
|
Memory System: |
13 readings are stored in memory and retained for 5 minutes (last, max., min., and 10 extra measurements) |
|
Detection: |
Laser diode / contact |
|
Update Time: |
1 second (typical) |
|
Power Requirement: |
2 AA 1.5V batteries (Life: Approx. 25 hrs) |
|
Construction: |
Die-cast aluminum housing |
|
Operating Temperature: |
32° – 113° F (0° – 45° C) |
|
Dimensions: |
6.6” L x 2.4” W x 1.8” H (167.5 mm x 60 mm x 46 mm) |
|
Product Weight: |
0.8 lb (365 g) |
|
Package Weight: |
Approx. 2 lb (.91 kg) |
|
Approvals: |
CE |
|
Warranty: |
2-Year |
|

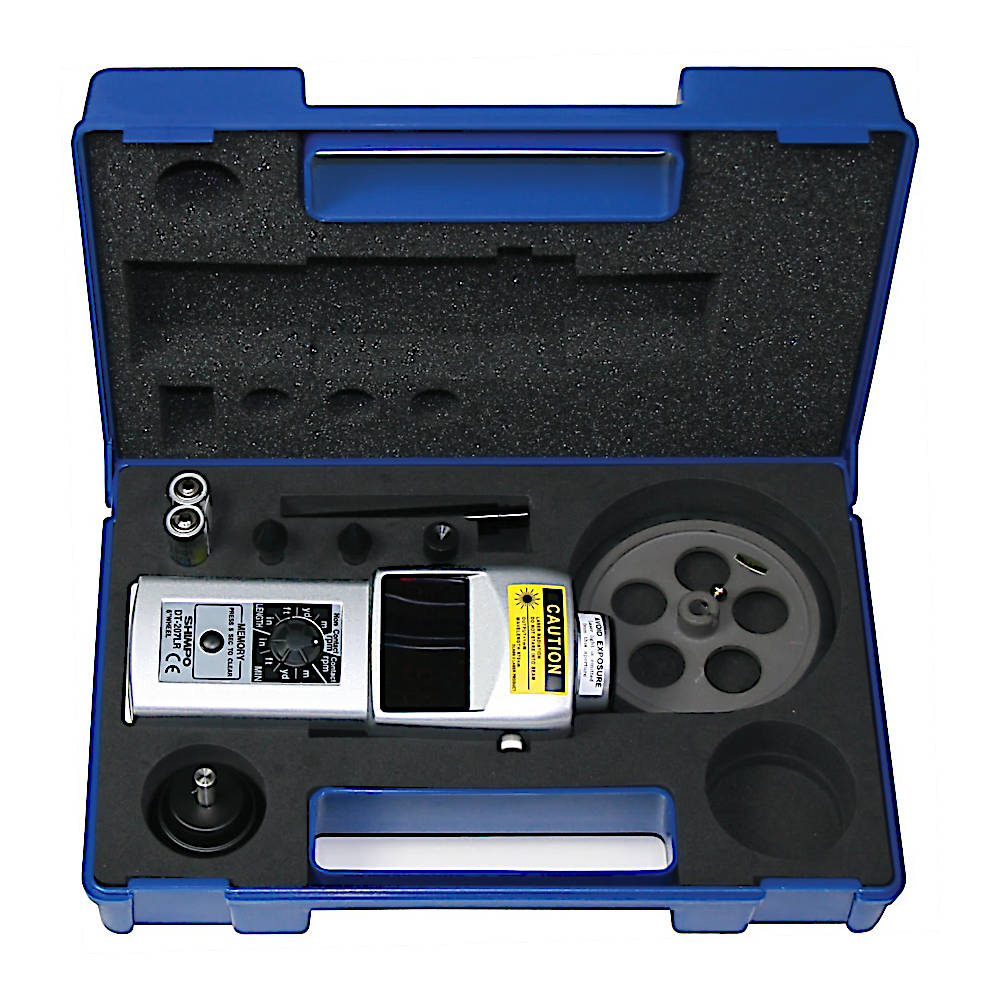

Included Accessories: |
Two AA Batteries, Reflective tape, 2 cone adapters, funnel adapter, 3½” extension shaft, carrying case, NIST certificate, master wheel (6” cir.) & contact adapter. |
|
Options: |
-S12 Option: Same as DT-207LR except 6” circumference wheel replaced with 12” circumference contact wheel |
LED Display Contact/Non-Contact Tachometer, 6" Circumference Measuring Wheel.
The laser-enabled DT-207LR has precise RPM measurement up to 20 feet. The Series DT-207LR digital tachometers incorporate laser technology yet retain our hallmark rugged construction and reliable quality components. Units offer incredible value and versatility as they can operate in non-contact and contact applications. These instruments feature a field-upgrade-able contact adapter for linear rate measure, conveniently allowing both non-contact and contact measurements.
Incorporating the precise laser technology and user-friendly functions as the DT-207LR tachometer, the DT- 207LR-S12 provides an exceptional accuracy in measuring speed and length via its 12” wheel. The larger wheel rotates more slowly than a standard 6” wheel, enabling reliable and safe registration of high speeds.
All Series 207LR units come standard with a NIST traceable calibration certificate. We’re confident you’ll agree that these fine units are the most advanced handheld tachometers on the market
FEATURES:
- Outstanding Accuracy allows usage in the strictest applications
- Sophisticated laser beam detection to 20 feet provides operator safety during testing
- Exceptionally rugged die-cast aluminum housing enables usage in the harshest conditions
- Wide field selection of units in both instantaneous rate as well as totalized length satisfies a multitude of user requirements
- Large 5 digit display aids user visibility
- 10 measurement memory capacity allows quick retrieval of stored data plus additional last, max. & min. values
- Long-life battery (25-40 hrs. continuous use) eliminates concerns of being down during testing
- Compact, Ergonomic design allows easy ergonomic grip
- Rear Threaded Inserts provides option to mount to stand or other device
- Available display options of either LCD or vibrant, bright red LED
- CE Mark combined with free NIST certificate provides a guarantee of quality performance
